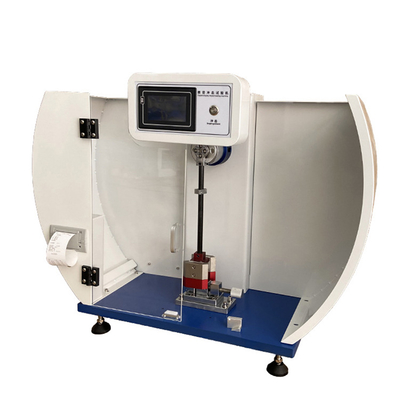

Smart Testing Equipment Izod And Charpy Pendulum Plastic Impact Tester With Great Price

1. Application

XJJD-T series impact testing machine is mainly used for the determination of the impact toughness of non-metallic materials such as hard plastics (including plates, pipes, and plastic profiles), reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, and electrical insulating materials. This testing machine is an ideal testing equipment for the chemical industry, scientific research institutions, quality inspection departments of colleges and universities, etc.

2. Standards:

The main technical parameters of this series of impact testing machines fully meet the requirements of IS0179, GB/T1043, GB/T2611, and GB/21189 standards

3. Main Technical Specifications:

3. Sample type, size, distance between support lines:

Specimen no.	Length(l)	Width (b)	Thickness (d)		Distance between support lines (L)
1	80±2	10±0.5	4±0.2		62
2	25h	10 or 15	3		20h
3	11h or 13h				6h or 8h
4. Technical Parameter:
Model:		XJJD-5T		XJJD-25T		XJJD-50T
Impact speed		2.9m/s		3.8m/s		3.8m/s
Impact energy		2.0,4.0,5.0J		5.0J, 7.5, 15.0, 25.0J		7.5,15.0,25.0,50.0J
Impact pendulum moment		Pd0.5=0.26795Nm Pd1=0.53590Nm Pd2=1.07180Nm Pd4=2.14359Nm Pd5=2.67949Nm		Pd5=2.67949Nm Pd7.5=4.01924Nm Pd15=8.03848Nm Pd25=13.39746Nm		Pd7.5=4.01924Nm Pd15=8.03848Nm Pd25=13.39746Nm Pd50=26.79492Nm
Rising Angle Of Pendulum		150⁰
Pendulum Impact Center To Impact Blade Distance: 230mm
Blade Corner Radius		(2±0.5)mm
Impact angle of blade		(30±1)⁰
Supporting Blade Corner Radius		(1.0±0.1)mm
Distance between jaw support lines		62			62
Power		220VAC+10%,50Hz
